High Performance 100KW 150KW Inverter LiFePo4 Battery Set Complete Home Solar Energy System MPPT for Car Charging Station

Variant

€8.003,99

High Performance 100KW 150KW Inverter LiFePo4 Battery Set Complete Home Solar Energy System MPPT for Car Charging Station

€8.003,99

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 18390510731 or maoyishunda@gmail.com

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:299.9267578125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:299.9267578125px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-10{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-11{margin-bottom:0}#detail_decorate_root .magic-12{position:relative;width:100%}#detail_decorate_root .magic-13{font-size:16px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:616.3755458515284px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:616.3755458515284px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:986px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:986px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:-24px;margin-left:0;width:856px;height:450px}#detail_decorate_root .magic-20{width:750px;border-collapse:collapse}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:261px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:146px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:130px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:127px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:727px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{display:none}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:128px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:445px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-29{width:446px}#detail_decorate_root .magic-30{overflow:hidden;width:446px;height:422.41515390686664px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:-10.704px;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-32{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-33{font-family:Roboto}#detail_decorate_root .magic-34{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-35{overflow:hidden;width:446px;height:392.48px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:-30.922666666666668px;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-37{overflow:hidden;width:446px;height:340.14933333333335px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:-53.52px;margin-left:-3.568px;width:446px;height:446px}#detail_decorate_root .magic-39{overflow:hidden;width:446px;height:333.0133333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:-156.992px;margin-left:8.325333333333333px;width:446px;height:594px}#detail_decorate_root .magic-41{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-43{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:670px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:670px}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-48{margin-top:10px;margin-left:9px;width:373px;height:373px}#detail_decorate_root .magic-49{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:441.2770809578107px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:441px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:808px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:808px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:269.7368421052632px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750.0000000000001px;height:269.7368421052632px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:441.4840637450199px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:441.4840637450199px}

Product Description

What is hybrid solar system?

A hybrid solar panel system is a combination of a grid-connected and storage-ready apparatus that provides consistent energy supply during day and night. The hybrid system stores energy for later use in one or multiple solar batteries but then can also pull from the grid in high energy use periods like hot summer months. Any solar-plus-storage system that is not meant to be entirely off-grid will be a hybrid system.

Our services include:

* - System Configuration Planning: Tailored power system configuration plans based on specific customer needs.

* - Product Customization: Support for customizing product appearance, packaging, and logo design.

* - Equipment and Material Procurement: Offering a multi-purpose product combination and shipping service.

* - Installation Design and Guidance: For a certain volume of purchases, we can dispatch engineers to provide on-site service support.

Specification

Solar system

Our off-grid photovoltaic power system consists of the following components:
* - Photovoltaic Modules (PV Panels)
* - Energy Storage Batteries
* - Inverters
* - Mounting Brackets

* -Accessories

* -PV Tools

Model	5K-US/EU	7.6K-US/EU	8K-US/EU
Battery Inout Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range	40V-60V
Max. Charging Current	120A	175A	190A
Max. Discharging Current	120	175A	190A
Charging Curve	3 Stages/Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power	5500W	8448W	8800W
Max. DC Input Voltage	500V
MPPT Range	125V-425V
Start-up Voltage	150V
Max.Input Current	18A+9A	18A+18A	18A+18A
No.of MPPT Trackers	2	2	2
No.of Strings Per MPPT Tracker	2+1	2+2	2+2
AC Output Data
Rated AC Output and UPS Power	5000W	7600W	8000W
Peak Power(off grid)	2 times of rated power, 10 S
Max. AC Current	20.8A	32A	33A
Output Frequency and Voltage	50/60Hz; 120Vac&240Vac(split phase), 230Vac(single phase)
Grid Type	Split phase/Single Phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
PV Arc Fault Detection	Integrated (Except European Type)
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Certifications and Standards
Grid Regulation	IEEE1547,VDE-ARN 4105, VDE0126
Safety Regulation	IEC62109-1&2, IEC62040-1
EMC	EN61000-6-1, EN61000-6-3, FCC 15 class B
General Data
Operating Temperature Range	-25~60℃, >45℃ Derating
Cooling	Fan
Noise (dB)	<30
Communication with BMS	RS485; CAN
Weight (kg)	32KG
Size (LengthWidthHeight mm	680420233mm
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	10 years

H ALF CELL MONO/POLY SOLAR PANEL

1. Positive power tolerance:0~+5w

2. 100%EL Double-inspection ensures modules are defects free

3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available

4. 158.75 mm, 166 mm, 182 mm, 210 mm Size

5. Full Cell, Half Cut, 3-Cut

6. Perc/Hjt/All Black/Frameless Tech

7. Customized brand

8. Waterproof Label on Back of Panel

SOLAR BATTERY BANK

1. Deep cycle long lifespan

2. High discharge performance

3. Easy installation and Maintenance-free

4. Agm/Gel/Lithium Ion Battery Type

5. 2V/12V/48V/Low Voltage Battery

6. More than 6000 times, up to 90% DOD

7. Wide suitability of ambient temperature range

8. Maintenance is simple, reducing deep discharge.

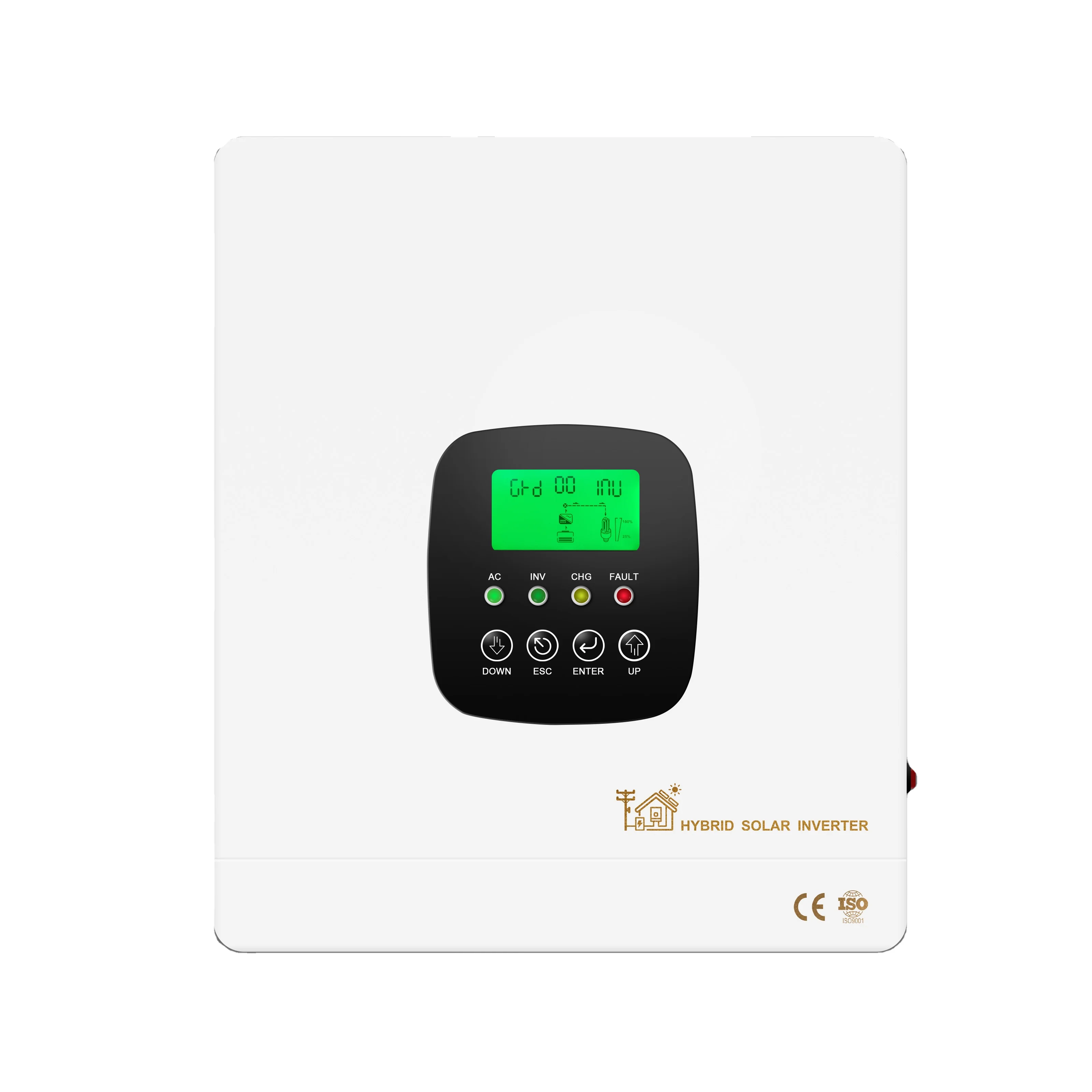

HYBRID SOLAR INVERTER

1. Wide input voltage range

2. Supports automatic battery switching

3. Compatible with lead-acid /lithium ion batteries

4. Built-in MPPT solar charge controller

5. Compatible anticountercurrent function

6. Touch screen LCD

7. Natural cooling, low noise

8. Battery reverse connect protection

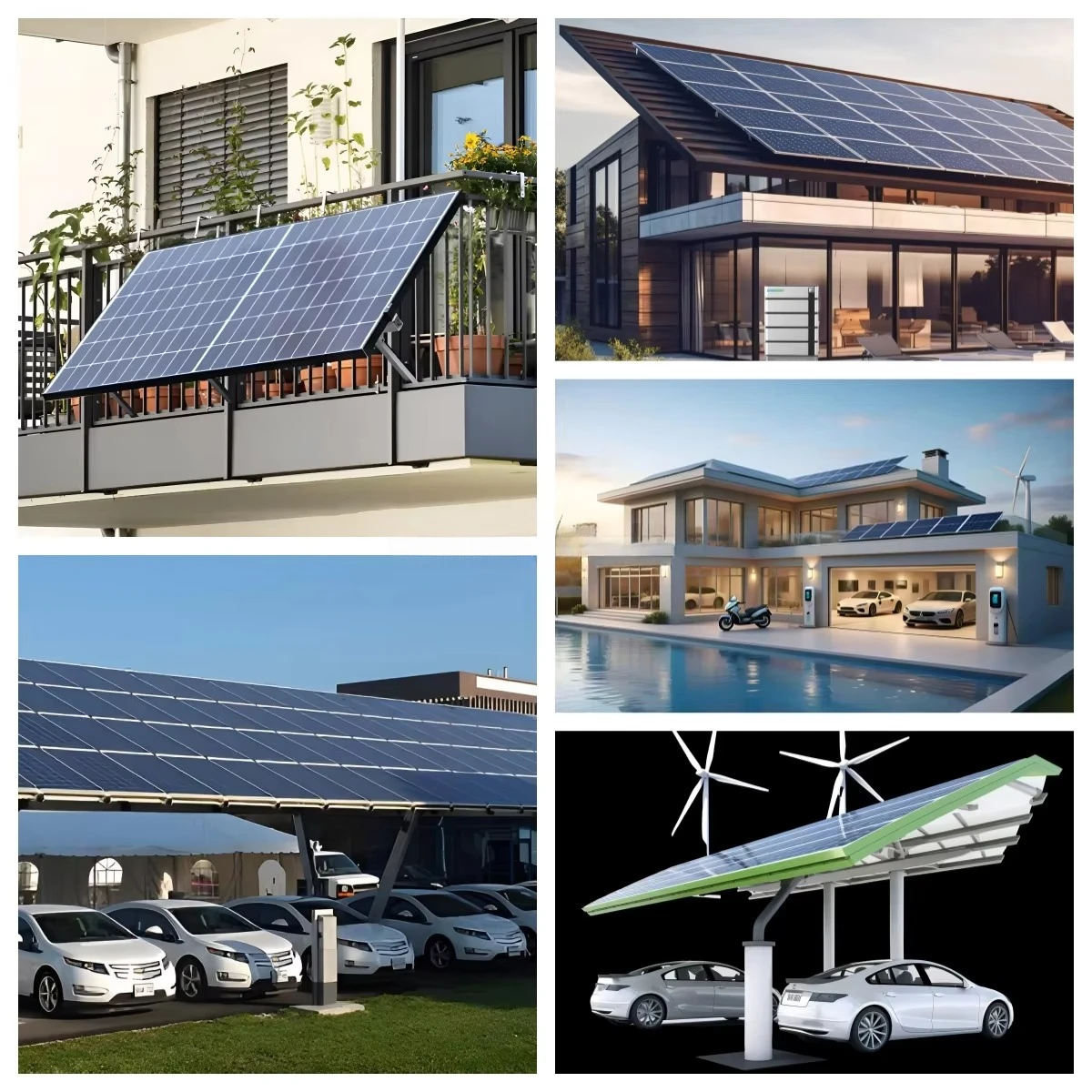

SOLAR MOUNTING SYSTEM

1. Ground Solar Mounting System

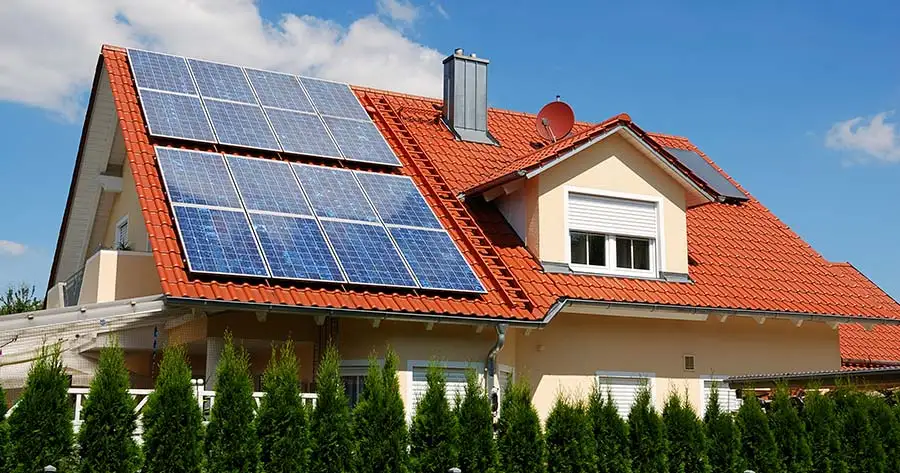

2. Residential Roof(Pitched Roof)

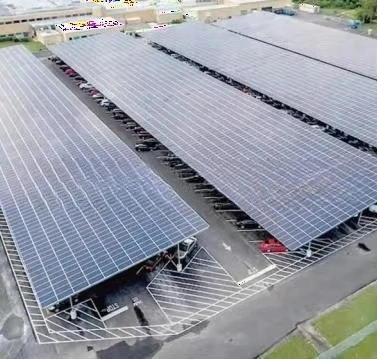

3. Car parking solar mounting system

4. Vertical wall solar mounting system

5. Commercial Roof(Flat roof&workshop roof)

6. All aluminum structure mounting system

7. Ballasted mount, Do not harm structure.

8. Most Parts are Preinstalled, Save 50% Labour Force

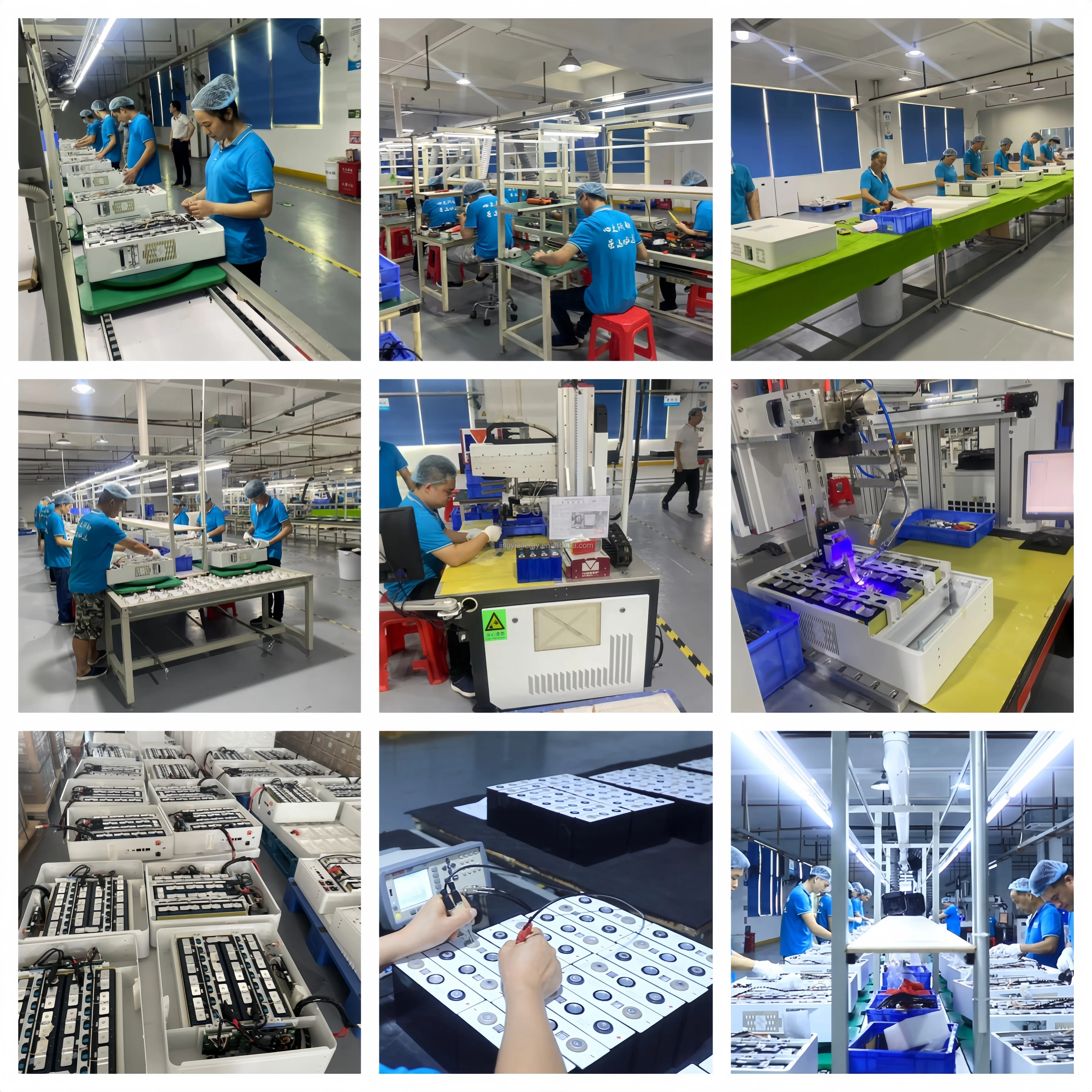

Production line

-Our focus is on the development of off-grid solar power generation and energy storage systems, offering preferential power generation system units, individual products, and comprehensive services to areas lacking electricity, with unstable power supply, or high electricity costs.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Recommend Products

Company Profile

Hebei Jingyi Machinery Equipment Technology Co., Ltd.

Since its establishment in 2017, our company has been a high-tech enterprise dedicated to the research and development, construction, operation, and maintenance of photovoltaic (PV) power systems. We are committed to
providing customized solar power solutions to our clients, with a track record of obtaining multiple installation patents and extensive experience in constructing and maintaining solar power stations.

FAQ

A:What are your main products?

Our company focuses on the development of solar power generation and energy storage system, and we provide power generation system configuration scheme according to the specific situation of users. And provide a variety of product portfolio delivery services such as solar panels, energy storage batteries, solar inverters, mounting brackets and other
accessories.

B: Are you a factory or a trading company?
We are an integrated trader of solar power generation system. We focus on the configuration of the system rather than the research and development of individual products. We provide customers with the most needed and suitable products, and give suggestions to some customers who don't know about solar power generation system.

C:Can you customize it by OEM and print our company's logo on the nameplate and packaging?
Yes, we can provide OEM for our customersafter reaching the required purchase volume, and our products support graphic
customization of appearance \ packaging \logo.

D:Can you guide the installation on site?
Yes, we can provide on-site installation guidance for customers who have reached a certain purchase volume, and we can also provide remote video guidance for customers who have not met the purchase requirements, and have made detailed installation manuals.

E: How does your factory carry out quality control?
Quality comes first. We have a professional team of engineers who are very familiar with most brands and models of equipment. We will assess the factory's qualification, production capacity, research and development capacity, product quality and after-sales service, and choose products with stable quality, guaranteed after-sales service and high cost performance for customers.

F: What kind of inverter can this product match?
We will choose the most suitable inverter for you according to your use environment, load power, configuration of solar panels and energy storage batteries and your budget.
