Lxy 120/240KW New Energy Electric Vehicle Charging Station Commercial Fast Charging 180KW DC Floor Pile Charging Station
Variant
€41.615,99
Saltar para a informação do produto
Lxy 120/240KW New Energy Electric Vehicle Charging Station Commercial Fast Charging 180KW DC Floor Pile Charging Station
€41.615,99
If you have any questions, Please contact our customer service
whatsApp：+86 15232153826
Email：kaigui8882@163.com
Recommend Products
Product Description
120/240KW new energy electric vehicle charging station commercial fast charging 180KW DC Floor pile charging station
Product Parameters
|
MODEL
|
MODEL
|
CFEVUD30
|
CFEVUD60
|
CFEVUD120
|
CFEVUD180
|
CFEVUD240
|
||||||||
|
Charging Type
|
Charging Type
|
DC fast charging
|
DC fast charging
|
DC fast charging
|
DC fast charging
|
DC fast charging
|
||||||||
|
Outlet Options
|
Outlet Options
|

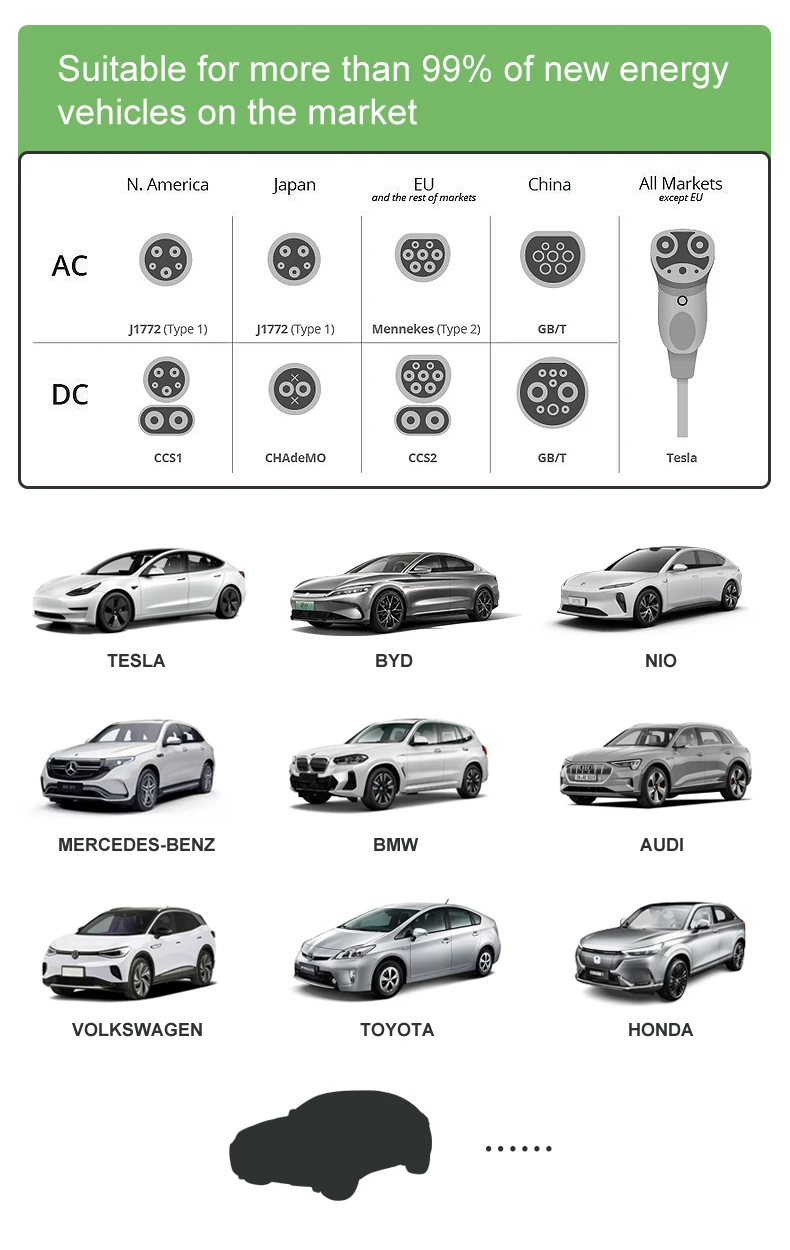

T2: AC Type 2 ,C: CCS2 cable , A: CcS1 cable , J: CHAdeMo cable , G: GBT cable
|
|
|
|
|
||||||||
|
AC Input Power @ 400V 50Hz
|
|
48 A, 33 kVA
|
93 A, 64 kVA
|
192 A, 128 kVA
|
288A,192kVA
|
384A,256kVA
|
||||||||
|
Input Voltage Range
|
Input Voltage Range
|
380/4001415 VAC
|
||||||||||||
|
Input Frequency
|
Input Frequency
|
50 Hz or 60 Hz
|
|
|
|
|
||||||||
|
DC
Outlet
|
DC Output
Power Rating
|
30KW
|
60KW
|
120KW
|
180KW
|
240KW
|
||||||||
|
DC Output Voltage
|
200-1000 Vdc(constant power from 300-1000Vdc)
|
|
|
|
|
|||||||||
|
Number of Ey Served
|
Up to 2
(JC, JA models)
Up to 1
(C, A, J, G models)
|
Up to 2
(CC, AA,JC,JJ,GG models)
Up to 1
(C,A, G models)
|
Up to 2
(C,A,G, CC, AA JC,JA,GG
models)
|
Up to 2
(C, A, G, CC, AA, JC, JA, GG models)
|
|
|||||||||
|
Cable Length
|
5.0 m, Optional: 6.0 m/ 7.0 m
|
|||||||||||||
|
Maximum
Current*
|
Ccs Cables
|
100A
|
200A
|
200A
|
200A
|
200A
|
||||||||
|
|
CHAdeMo Cables
|
100A
|
125A
|
125A
|
125A
|
125A
|
||||||||
|
|
GBT Cables
|
100A
|
200A
|
250A
|
250A
|
250A
|
||||||||
|
Cable Length
|
|
5.0 m, Optional: 6.0 m/ 7.0 m
|
|
|
|
|
||||||||
|
Electro-Magnetic Compatibility
|
|
Class A (optional Class B) according to EN 61000-6-3:2007
|
|
|
|
|
||||||||
|
Distribution Systems
|
|
TN-S. TN-C,TN-C-S, TT (required external RCD)
|
|
|
|
|
||||||||
|
Connector Type
|
|
3P + N+ PE
|
|
|
|
|
||||||||
|

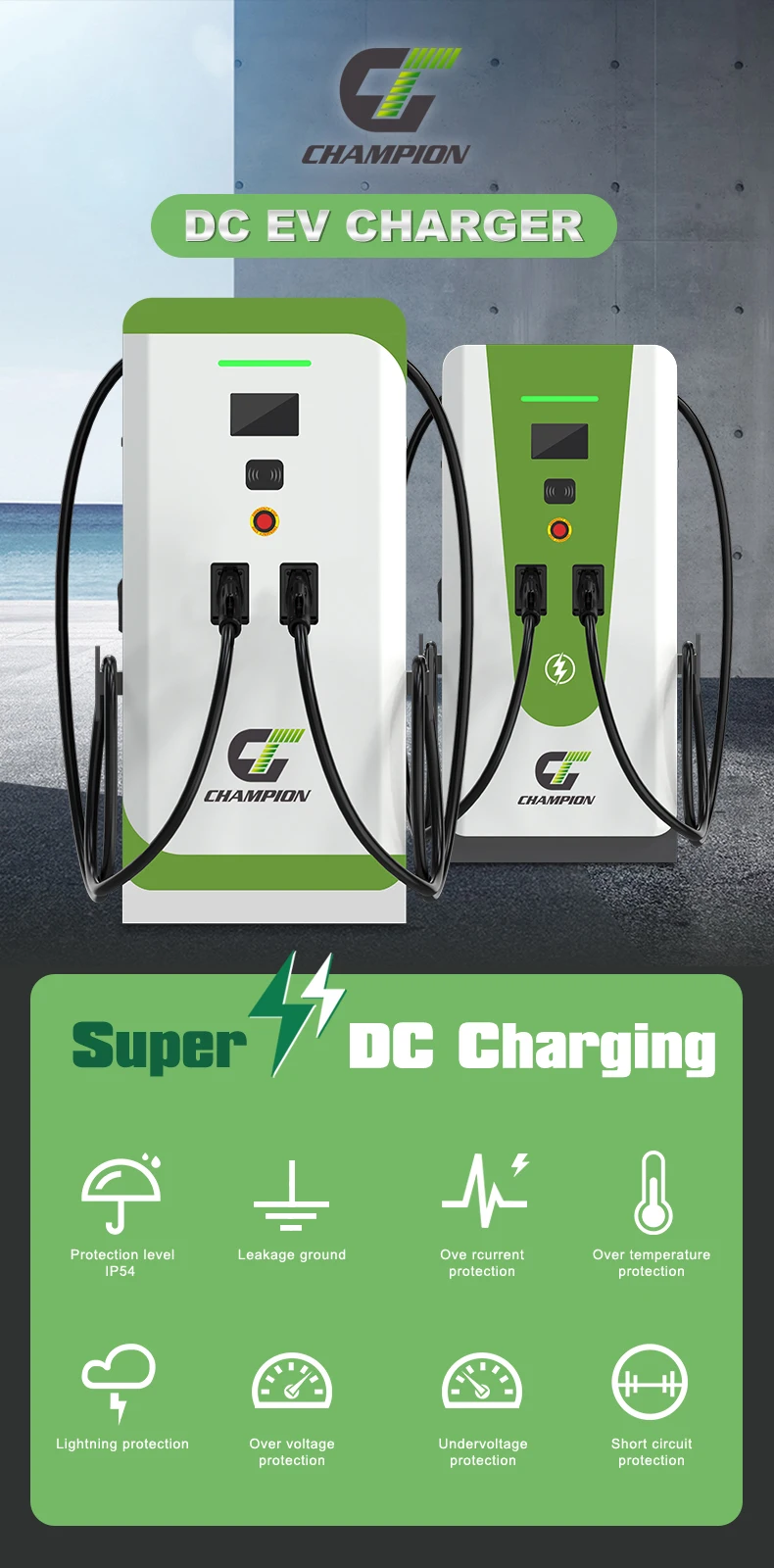

Protection
|
|
Overcurrent,overvoltage,undervoltage, integrated surge protection,ground fault including Dc leakage protection, door opening protection
|
|
|
|
|
||||||||
|
Overvoltage Category
|
|
Type ll
|
|
|
|
|
||||||||
|
Power Factor (Full Load)
|
≥ 0.98
|
≥ 0.99
|
≥ 0.99
|
|||||||||||
|
THDi
|
≤ 5%
|
|||||||||||||
|
Efficiency
|
≥ 93% (peak)
|
≥ 94% (peak)
|
||||||||||||
|
Standby Powwer
|
＜35W
|
|||||||||||||
|
Short Circuit Current
|
10 kA
|
|
|
|
|
|||||||||
|
Pre-charge Current
|
＜1A
|
|
|
|
|
|||||||||
|
inrush curent
|
＜55A
|
＜100A
|
＜100A
|
|
|
|||||||||
|
Leakage Current
|
0.8mA
|
|
|
|
|
|||||||||
|
Energy Metering
|
Standard: Meter for Dc outlet, Optional: AC inlet
|
|
|
|
|
|||||||||
|
Cellular Communication
|
GSM /4G/ LTE
|
|
|
|
|
|||||||||
|
USER INTERFACE
|
||||||||||||||
|
ConnectiMity
|
Internet access via 4G/3G/Ethernet (RJ45)
|
|||||||||||||
|
User Authentication
|
RFID, QR code
|
|
|
|
|
|||||||||
|
User interface
|
7"LCD high-contrast touchscreen
|
|
|
|
|
|||||||||
|
Communiation Protocols
|
Proprietary and OCPP 1.6J
|
|
|
|
|
|||||||||
|
RFlD Reader
|
ISO/lEC 14443 A/B Mifare RFID reader
|
|
|
|
|
|||||||||
|
Emergency Button
|
Yes
|
|
|
|
|
|||||||||
|
CONFIGURATION
|
|
|
|
|
|
|||||||||
|
Software Upgrade
|
Yes
|
|
|
|
|
|||||||||
|
Language System
|
English, Chinese, French,Spanish,Russian
|
|
|
|
|
|||||||||
|
GENERAL CHARACTERISTICS
|
|
|
|
|
|
|||||||||
|

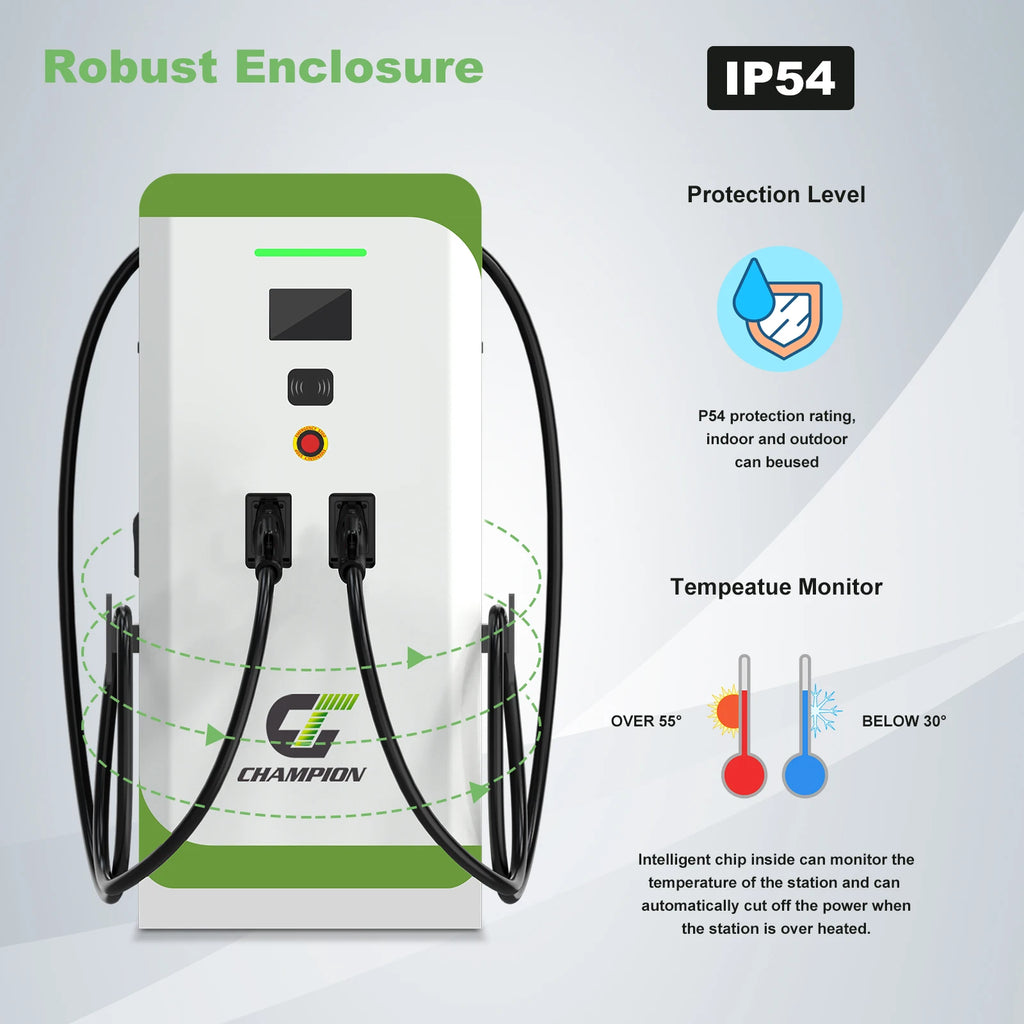

Protection Rating
|
IP54 and lk10 (cabinet)/ lk8(touchscreen)
|
|
|
|
|
|||||||||
|
Housing Material
|
SGCC,Optional: SUS430
|
|
|
|
|
|||||||||
|
Operating Altitude
|
Up to 2000 m
|
|
|
|
|
|||||||||
|
Operating Temperature
|
-35 ℃ to +55℃
|
|
|
|
|
|||||||||
|
Storage Temperature
|
-40 ℃ to +70℃
|
|
|
|
|
|||||||||
|
Humidity
|
＜95%,noncondensing
|
|
|
|
|
|||||||||
|
Mounting
|
Free-standing cabinet
|
|
|
|
|
|||||||||
|

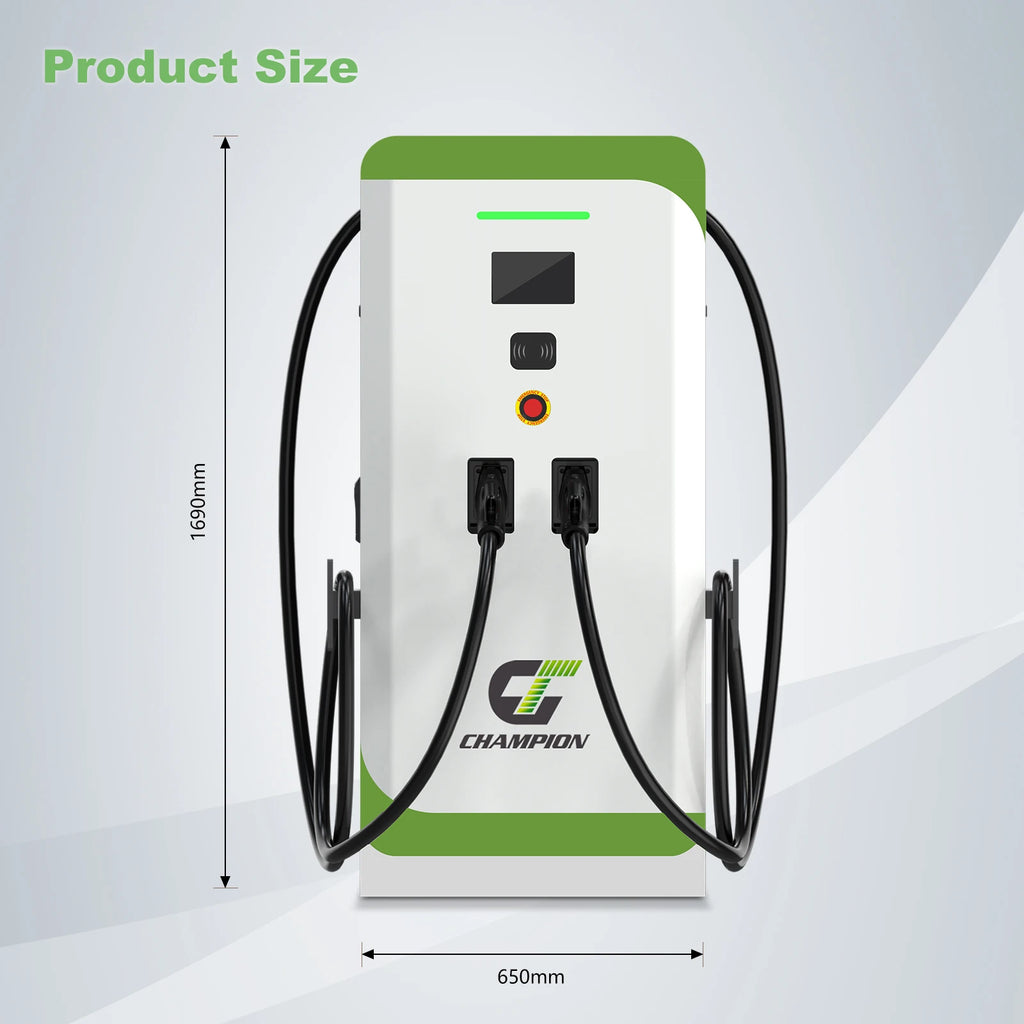

Dimensions (D×W×H) mm
|
280 x 660 x 1350
|
|
640 × 750 x 1650
|
|
|
|||||||||
|
Net weight (kgs)
|
80
|
105
|
175
|
326
|
370
|
|||||||||
|
COMPLIANCE STANDARDS
|
||||||||||||||
|
Codes & Standards
|
IEC61851-21-2,IEC61000, IEC/EN 61851-1.IEC 61851-23,IEC 61851-24,IEC 62196-1
IEC 62196-3,GBT18487,GBT20234,NB/T 33008.1,NB/T 33001
|
|||||||||||||
|
Communication to the EV
|
DIN 70121,ISO/IEC 15118,GBT27930,GBT 34657.GBT 34658
|
|
|
|
|
|||||||||
DC EV Charging, we support 30KW,60KW,80KW,100KW,120KW,150KW,160KW,180KW,240KW.
One port charging gun and double charging gun.
Products Details
Our EV car chargers have been sold to over 40 countries , such as Germany, India, USA, Canada, Netherlands, Switzerland, India, Slovakia, Bolivia, Argentina, Netherlands, Switzerland etc.

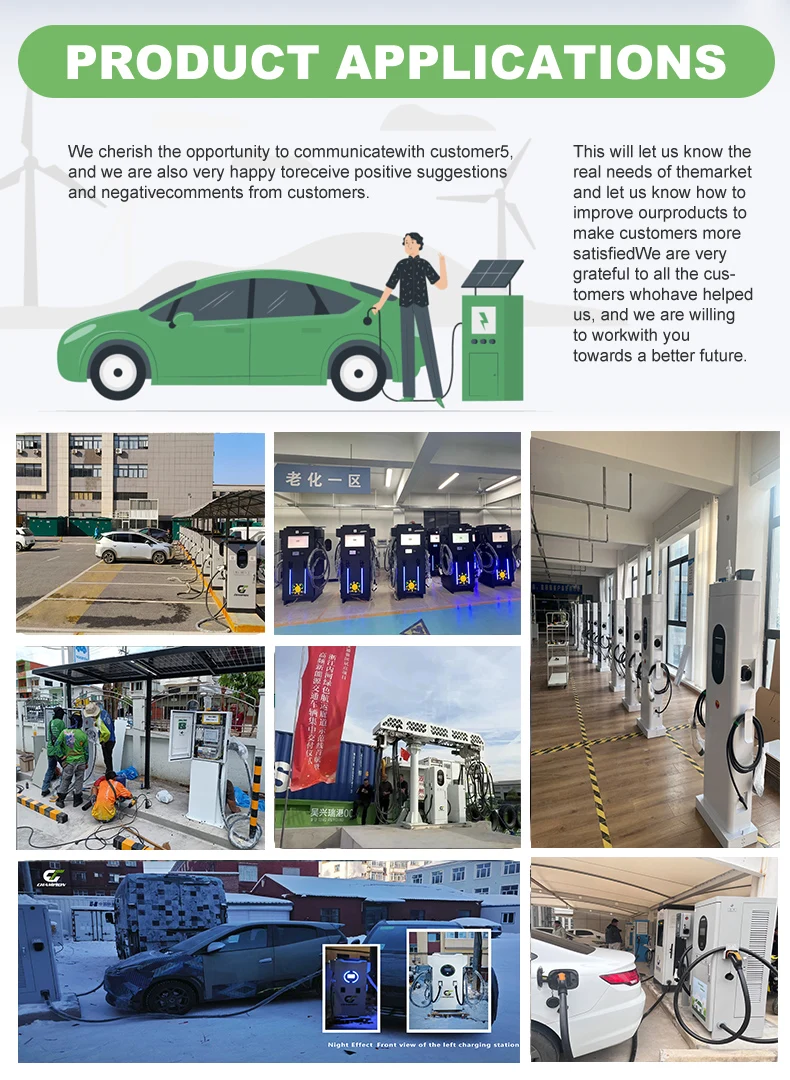

The Charging piles are widely used in Residential, Wokeplace Business, Gas Station, High-speed Service Station, Parking Lot, Household.
Company Profile

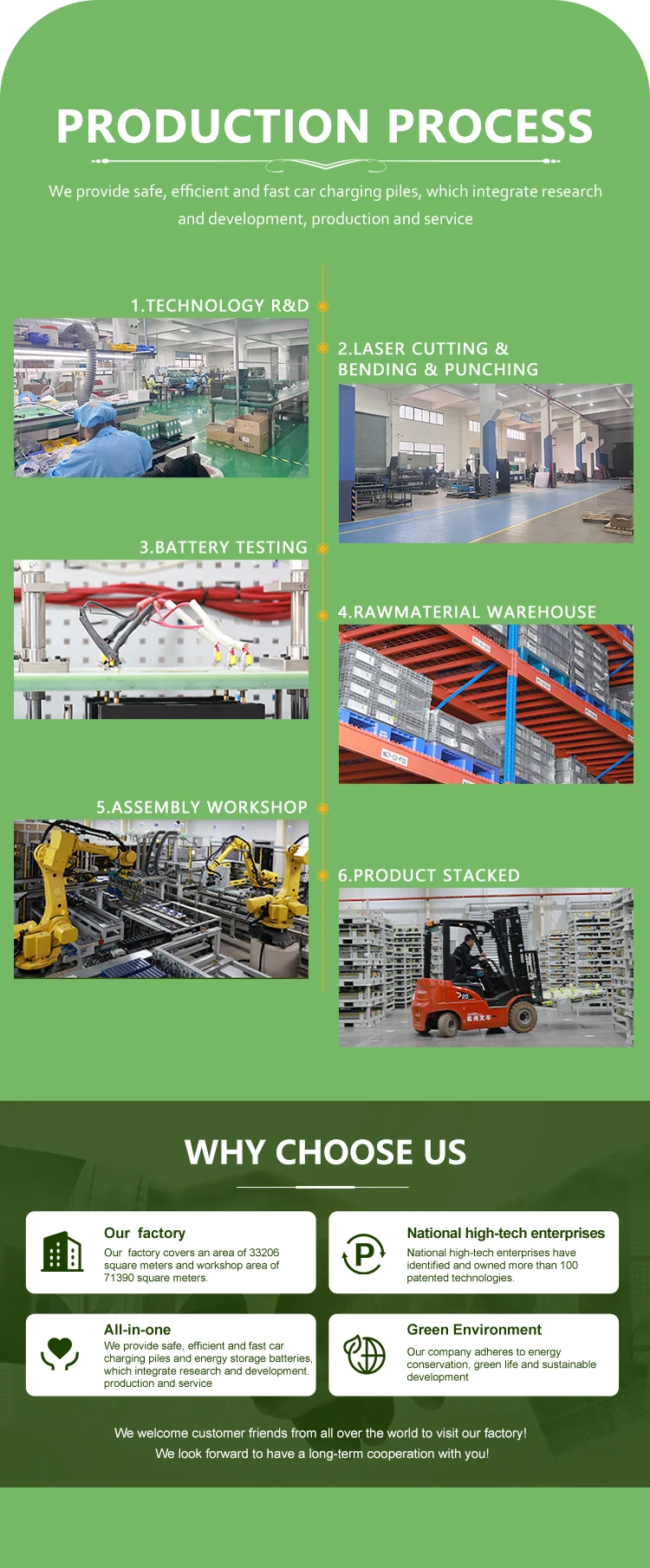

Production & Certifications
Packing & Delivery
FAQ
1:Why choose us?
A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises and has more than 100 patented technologies.
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
