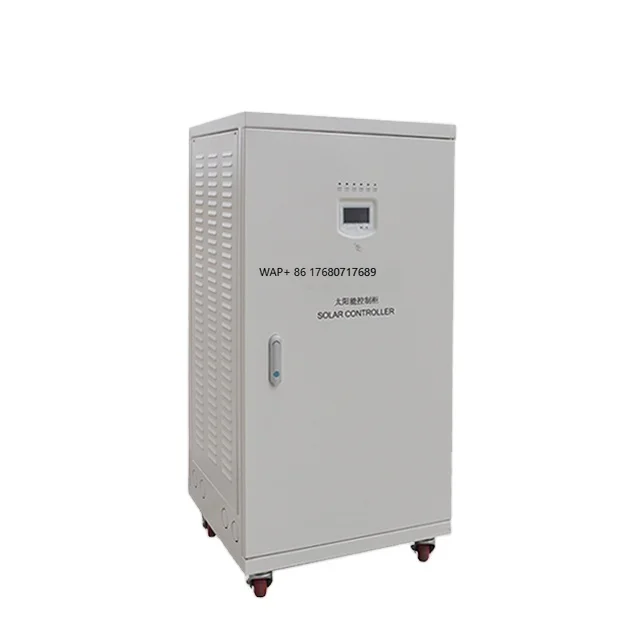

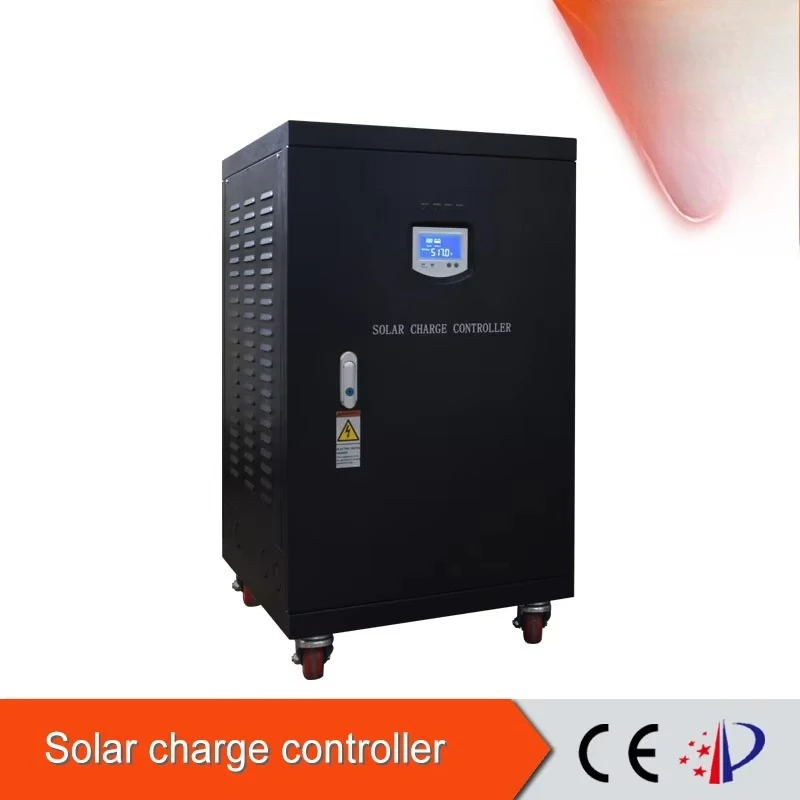

MPPT Solar Charge Controller 48V 160A for Solar Power System
€8.112,99
Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 17680717689 or maoyishunda@gmail.com
Properties of the solar charge controller

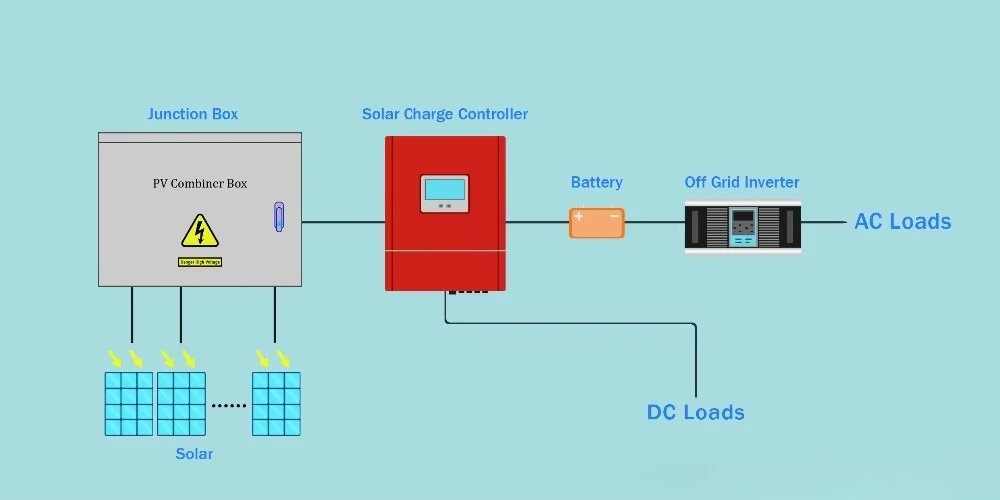

1. Design for off-grid solar power system.
2. Applicable to different kinds of batteries.
3. Modular design with simple structure and easy maintenance.
4. Automatic power control function.
5. LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge current.
6. MODBUS protocol. The problem that the protocol cant be compatible with other devices is solved. It is convenient to do secondary development.
7. Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module wont be damaged.
8. Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery(high voltage is optional)
9.Perfect protection function: Solar reverse charge protection, Solar reverse connection protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc ,thus the system has higher reliability.
|
Model |
48V100A |
48V150A |
48A160A |
48V200A |
|
Battery group rated voltage |
48V |
48V |
48V |
48V |
|
PV open circuit voltage range |
100V |
100V |
100V |
100V |
|
PV Rated current |
100A |
150A |
160A |
200A |
|
PV Max. power |
4..8KW |
7.2KW |
7.68KW |
9.6KW |
|
Input PV module road number |
1/2 |
2/3 |
2/3 |
2/4 |
|
Function |
Auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc. |
|||
|
Display mode |
LCD |
|||
|
Display content |
solar panel voltage, solar panel current, solar panel power, battery voltage, charge current |
|||
|
Floating Charge Voltage (adjustable) |
55.2V |
55.2V |
55.2V |
55.2V |
|
Stop charge voltage |
58V±2 |
58V±2 |
58V±2 |
58V±2 |
|
Recharge voltage |
54V±2 |
54V±2 |
54V±2 |
54V±2 |
|
Voltage drop between PV and battery |
1.5V |
|||
|
Max itself power consumption |
100mA-150mA |
|||
|
Work environment temperature |
-30-60°C |
|||
|
Relative humidity |
<90% No condensation |
|||
|
Applicable altitude |
<3000m |
|||
|
Noise (1m) |
<40dB |
|||
|
Degree of protection |
IP20(Indoor) |
|||
|
Cooling method |
Forced air cooling |
|||
|
*Communication interface (optional) |
RS485/USB/GPRS/Ethernet |
|||
|
*Temperature compensation(optional) |
-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
|||
|
Product size(MM) |
530*500*260 |
585*585*980 |
585*585*980 |
585*585*980 |
|
Weight(KG) |
20 |
65 |
65 |
75 |
