48V-100A

€6.267,99

€6.267,99

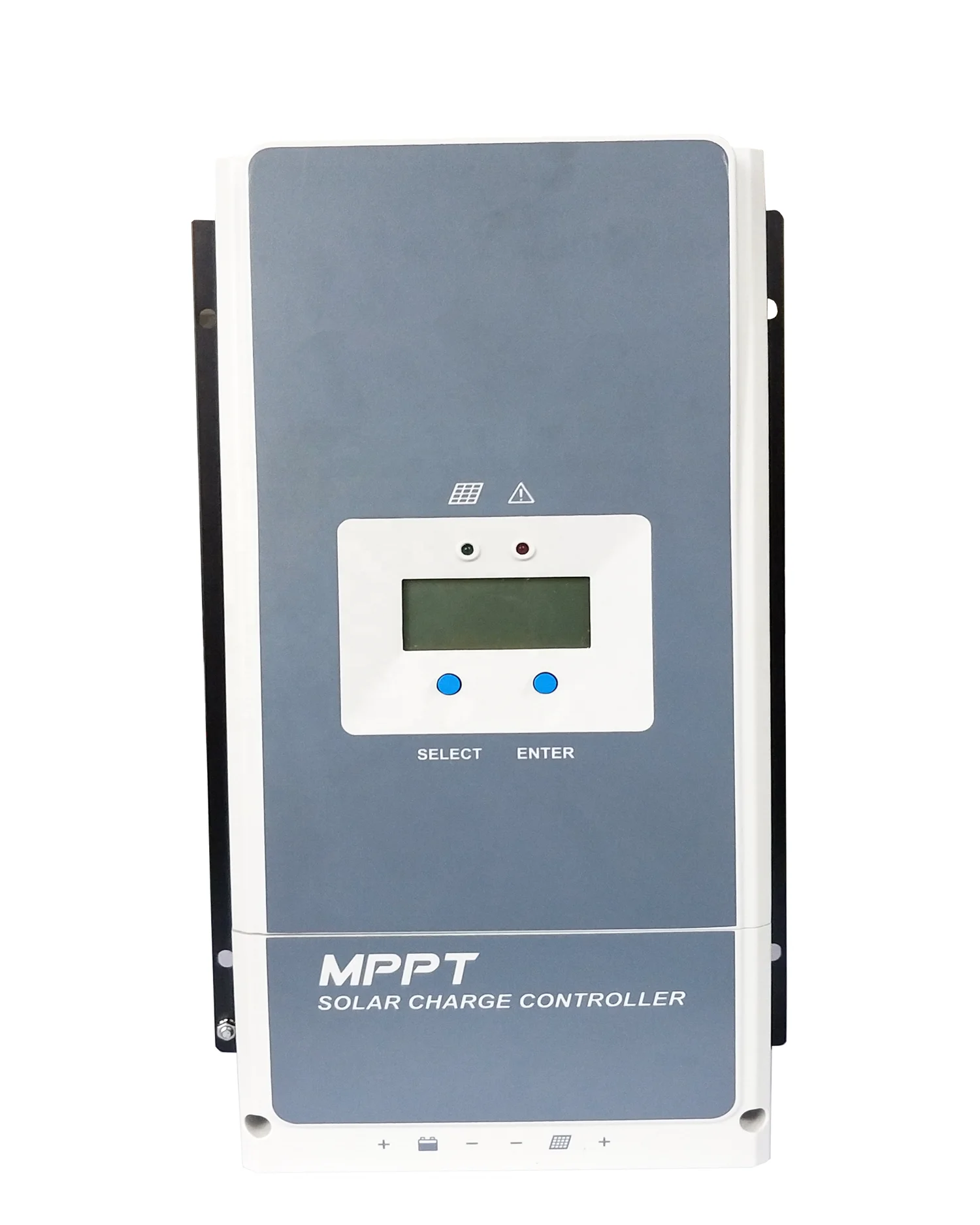

Top Quality 100A MPPT Solar Charge Controller For 5KW Solar Power System

48V 100A Solar Charge Controlle

Product Features:

1. CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)

2. High quality & low failure rate components of ST and Infineon to ensure the product’s life

3. Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed

4. Maximum DC/DC transfer efficiency is as high as 98.7%

5. Advanced MPPT control algorithm will minimize the MPP loss rate and loss time

6. The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP

7. The wider range of MPP operating voltage.

8. Auto control system to limit the charging power & current go over the rated value.

9. Support 4 charging options: Sealed, Gel, Flooded and User.

10.Battery temperature compensation function

11. Real-time energy recording and statistical function

12. Automatic over-temperature power reduction function

13. Hundred percent full load operation in working environment temperature range within charging & discharging

Protection:

PV Over Current/power •

PV Short Circuit •

PV Reverse Polarity •

Night Reverse Charging •

Battery Over Voltage •

Battery Over Discharge •

Battery Overheating •

Controller Overheating •

TVS High Voltage Transients

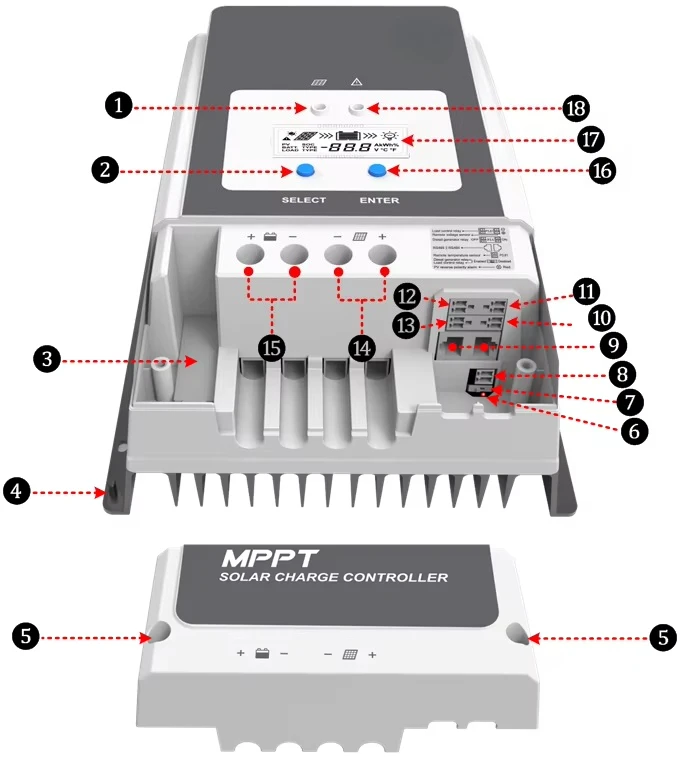

Characteristics

1-Charging LED indicator	10- Utility/Generator relay ON
2-SELECT button	11- RBVS Port(3)
3-Fuse	12-Load control relay(4)
4-Grounding Terminal	13- Utility/Generator relay OFF
5-Cover screw holes M4	14-PV Terminals(5)
6-PV reverse polarity alarm indicator	15-Battery Terminals (5)
7- Generator and load relay enable(1)	16-ENTER button
8- RTS Port(2)	17-LCD
9- RS485 port(5VDC/200mA)	18-Fault LED indicator

Technical Data Sheet

Rated charge Power	1250W/12V 2500W/24V 3750W/36V 5000W/48V	625W/12V 1250W/24V 1875W/36V 2500W/48V	750W/12V 1500W/24V 2250W/36V 3000W/48V	1000W/12V 2000W/24V 3000W/36V 4000W/48V	1250W/12V 2500W/24V 3750W/36V 5000W/48V
Max. PV open circuit voltage	150V(1) 138V(2)	200V(1) 180V(2)
MPP Voltage Range	(Battery Voltage +2V) ~108V(3)	(Battery Voltage+2V)~144V(3)
Tracking efficiency	≥99.5%
Conversion efficiency	≤98.7%
Temperature compensate coefficient	-3mV/℃/2V(Default)
Self-consumption	98mA/12V;60mA/24V;50mA/36V;46mA/48V
Grounding	Common negative
Relay	Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
RS485 interface	RS485(RJ45)
LCD backlight time	60S(Default)

Item	DMT5210AN	DMT6210AN	DMT5415AN	DMT6415AN	DMT8415AN
Nominal System Voltage	12/24VDC or Auto		12/24/36/48VDC or Auto
Battery Input Voltage Range	8V~32V		8V~68V
Battery Type	Sealed/Gel/Flooded/User
Battery fuse	80A/58V				150A/58V
Rated charge current	50A	60A	50A	60A	80A
Rated charge Power	625W/12V 1250W/24V 1875W/36V 2500W/48V	750W/12V 1500W/24V 2250W/36V 3000W/48V	625W/12V 1250W/24V 1875W/36V 2500W/48V	750W/12V 1500W/24V 2250W/36V 3000W/48V	1000W/12V 2000W/24V 3000W/36V 4000W/48V
Max. PV open circuit voltage	100V(1)92V(2)		150V(1)138V(2)
MPP Voltage Range	(Battery Voltage+2V)~72V(3)		(Battery Voltage +2V)~108V(3)
Tracking efficiency	≥99.5%
Conversion efficiency	≤98.7%
Temperature compensate coefficient	-3mV/℃/2V(Default)
Self-consumption	98mA/12V;60mA/24V;50mA/36V;46mA/48V
Grounding	Common negative
Relay	Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
RS485 interface	RS485(RJ45)
LCD backlight time	60S(Default)

Dimension & Weight
